How to adjust torque
Find the model for your mounting and load requirements, from standard configurations to custom length, material, profile and drive torque.

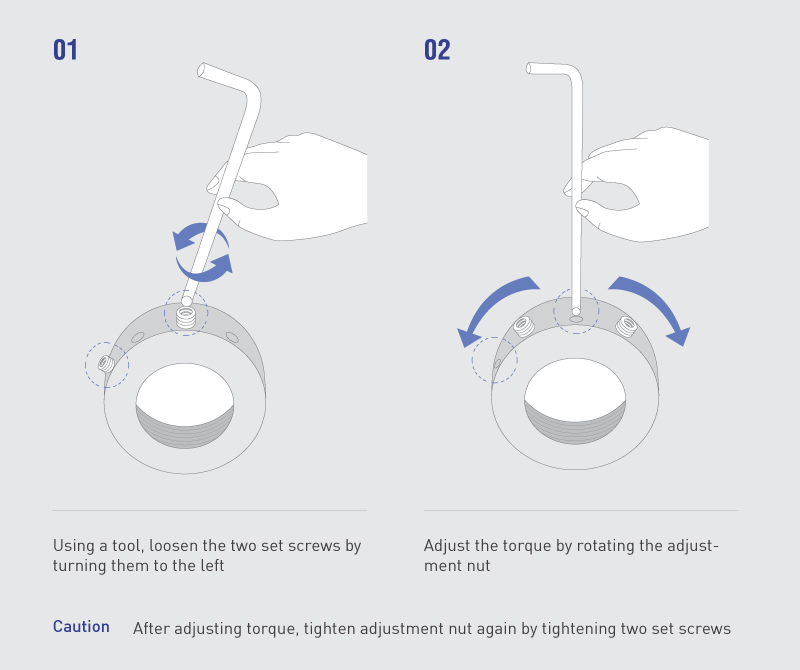

How to adjust torque
Loosen the two set screws, then rotate the adjustment nut to set the required drive torque.
- 01
Loosen the set screws
Using the appropriate tool, turn the two set screws counterclockwise to loosen them.
- 02
Adjust the drive torque
Rotate the adjustment nut until the required drive torque is reached.
CautionAfter adjusting the drive torque, tighten both set screws again to secure the adjustment nut.

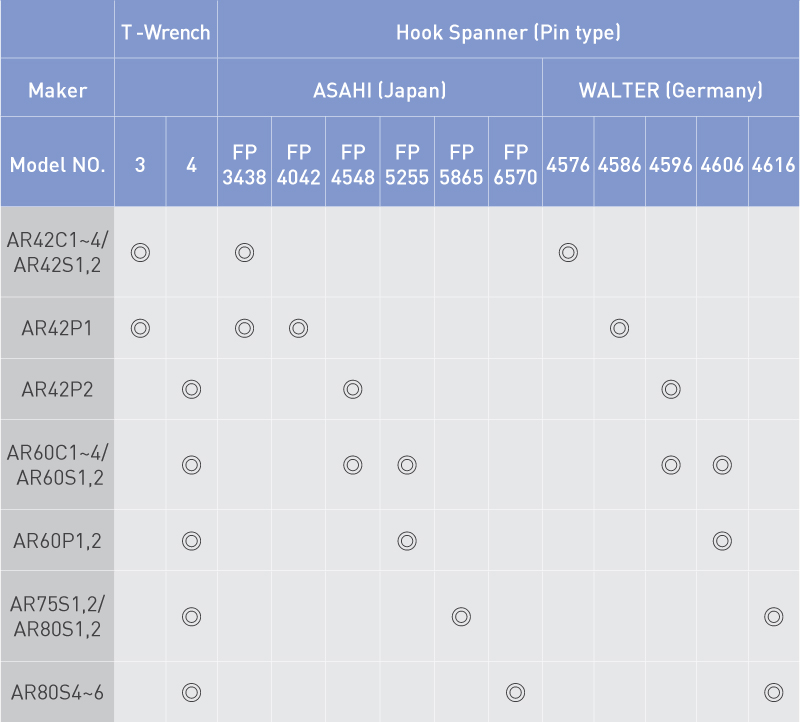

Adjustment tools
Use the T-wrench or pin-type hook spanner specified for the product model.
